Thermo and optical light camera



-
+


Select quantity

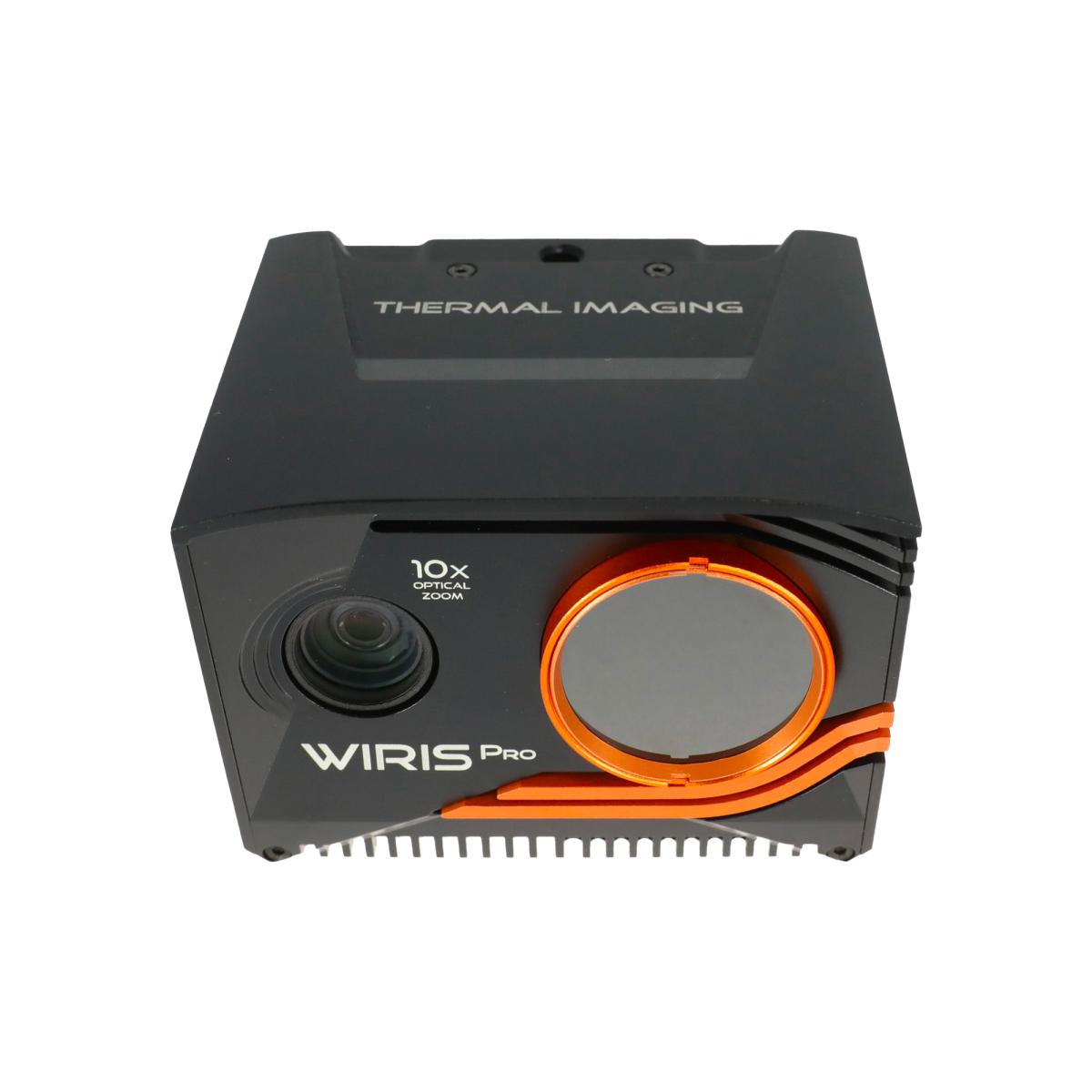

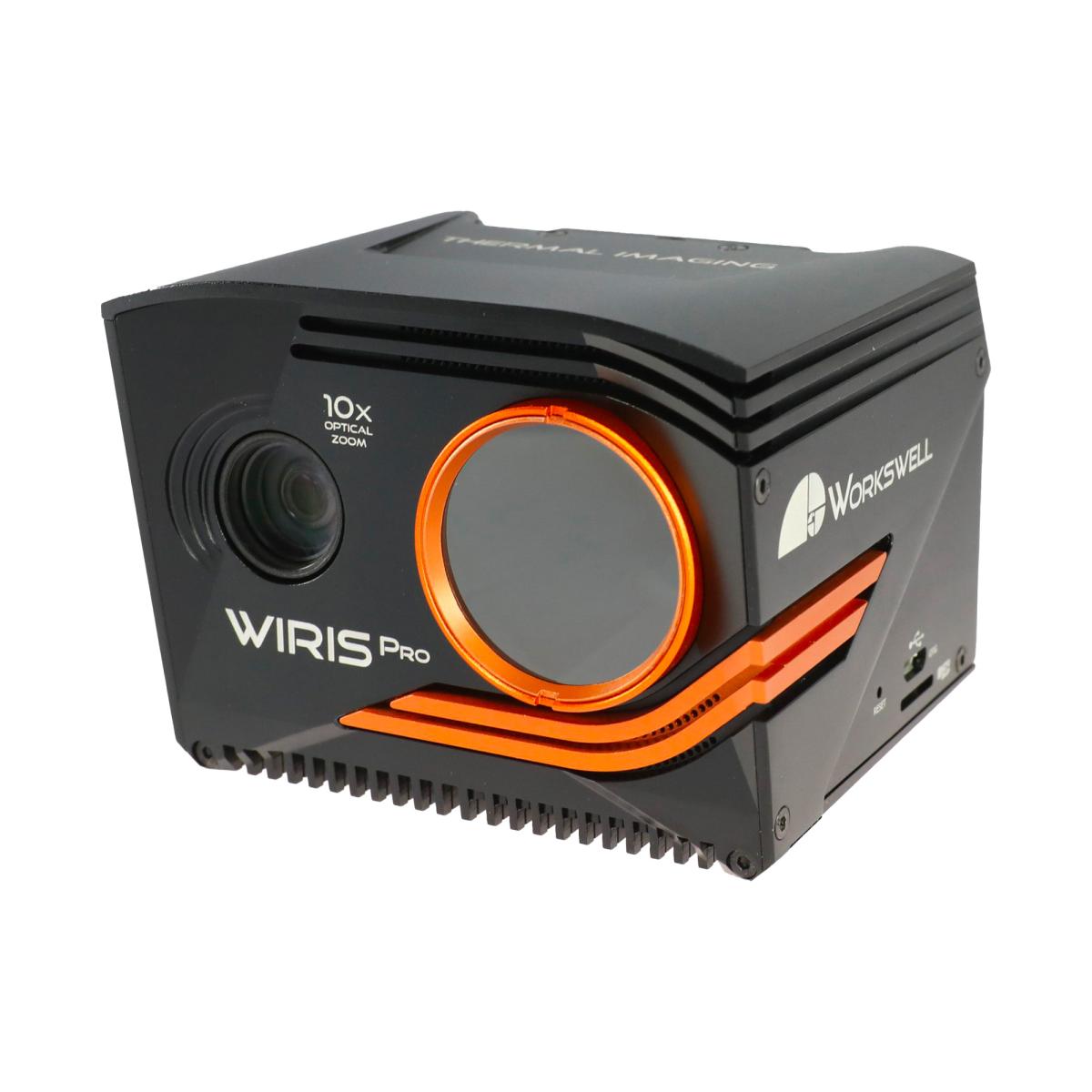

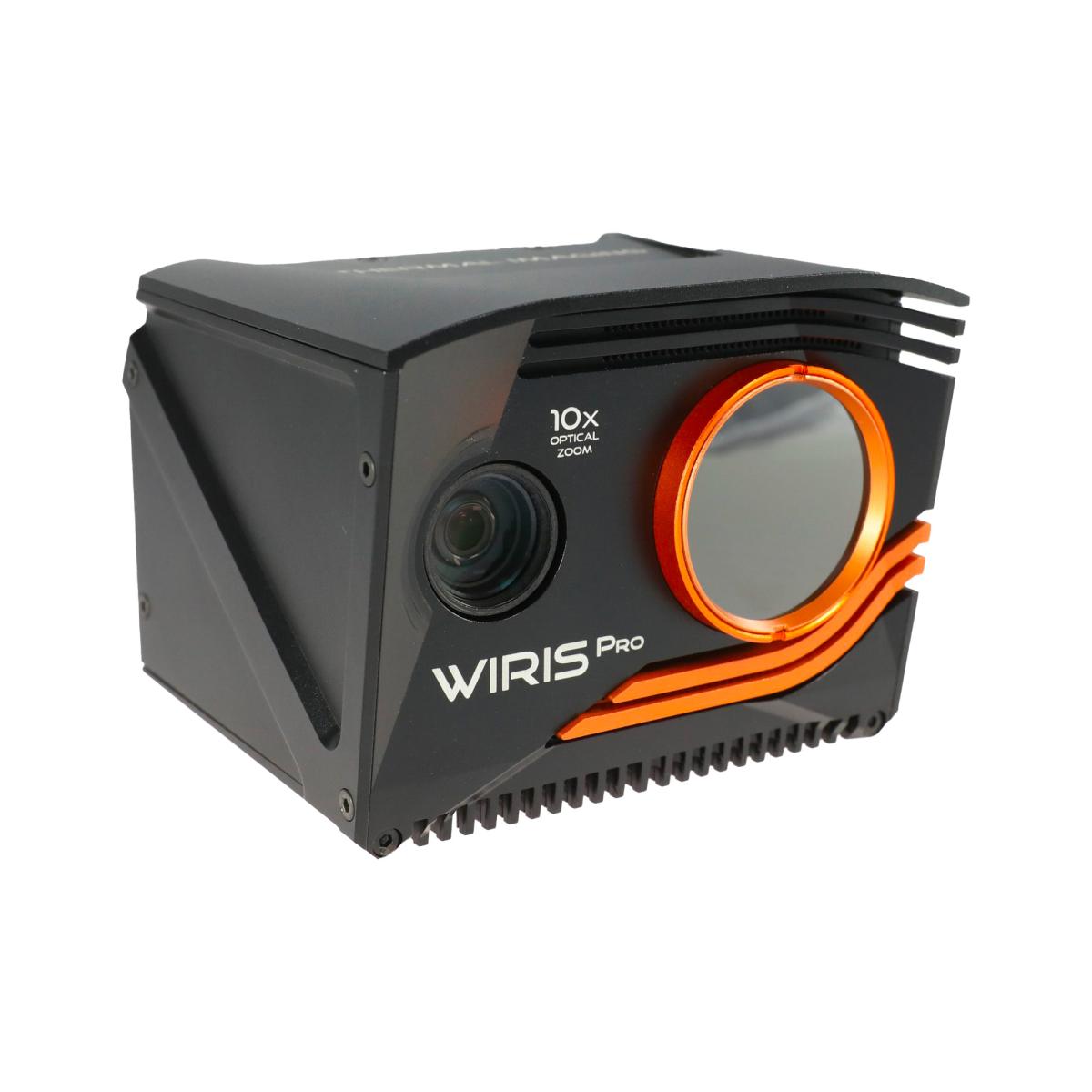

The Workswell WIRIS® Pro is a specially designed thermodiagnostic device. Its thermal camera is equipped with an LWIR microbolometric sensor with 640×512 px resolution (in the 7.5 – 13.5 μm range), and its ‘Super Resolution Mode’ functionality delivers a final thermogram in 1266×1010 px resolution.
The RGB camera comes with Full HD (1920 x 1080 px) resolution and provides an absolutely unrivalled optical ultrazoom – as much as 10x (6.9° to 58.2° field of vision).
The highest possible temperature that the thermal camera can measure is 1,500 °C.


High Resolution and Thermal Sensitivity

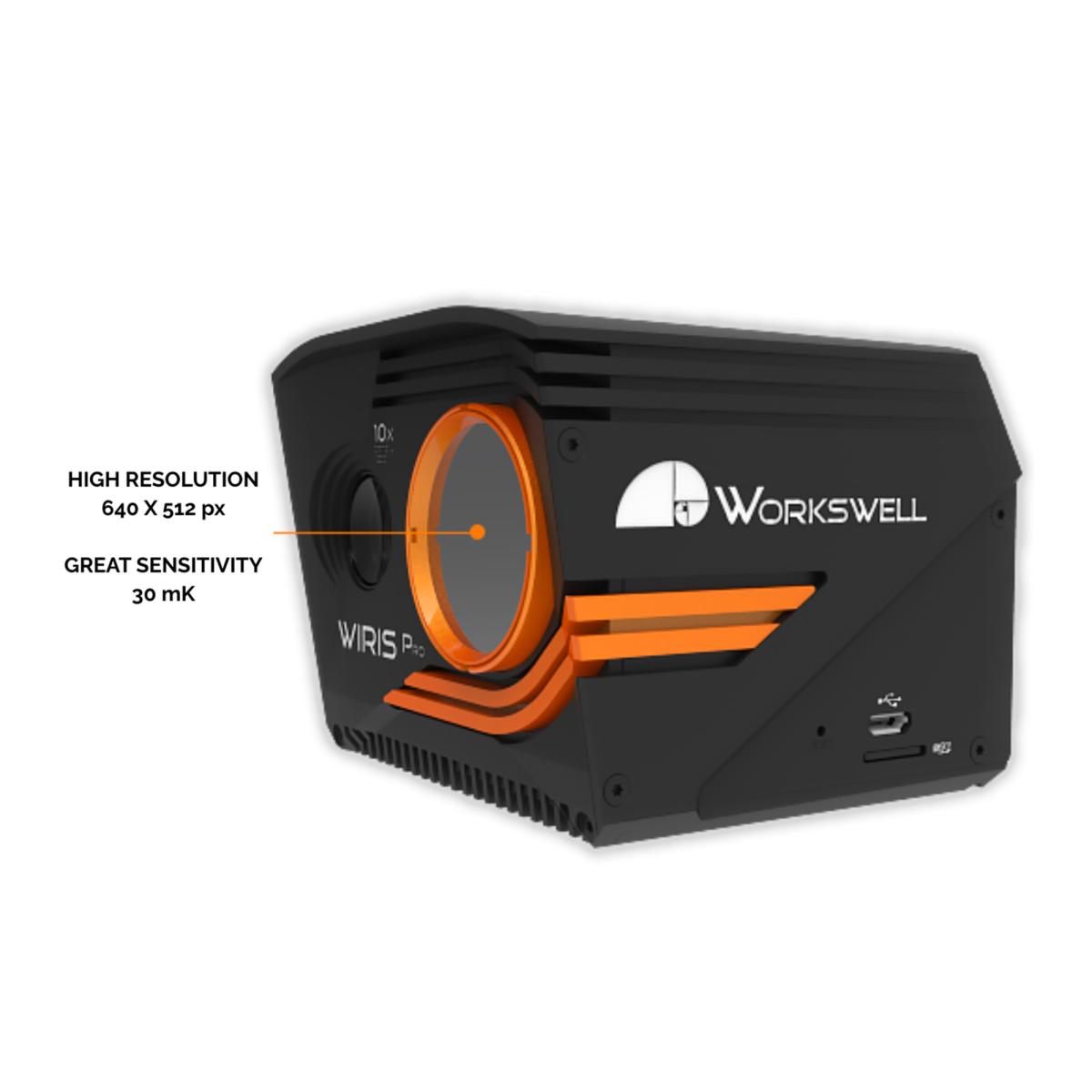

Our thermal camera is equipped with an LWIR microbolometric sensor with 640×512 px resolution and Super Resolution Mode functionality, which facilitates the creation of a final thermogram at 1266 x 1010 px resolution. The standard WIRIS Pro delivers 50 mK temperature sensitivity, and we offer a 30 mK premium version.

Precise RGB Camera with Optical 10x ZOOM for Inspections

The  WIRIS Pro’s RGB camera comes with Full HD (1920 x 1080 px) resolution and, most importantly, it provides an absolutely unrivalled optic ultrazoom – up to 10x (6.9° to 58.2° field of vision). ZOOM is fully synchronous with the thermal camera and makes for an advanced inspection tool.

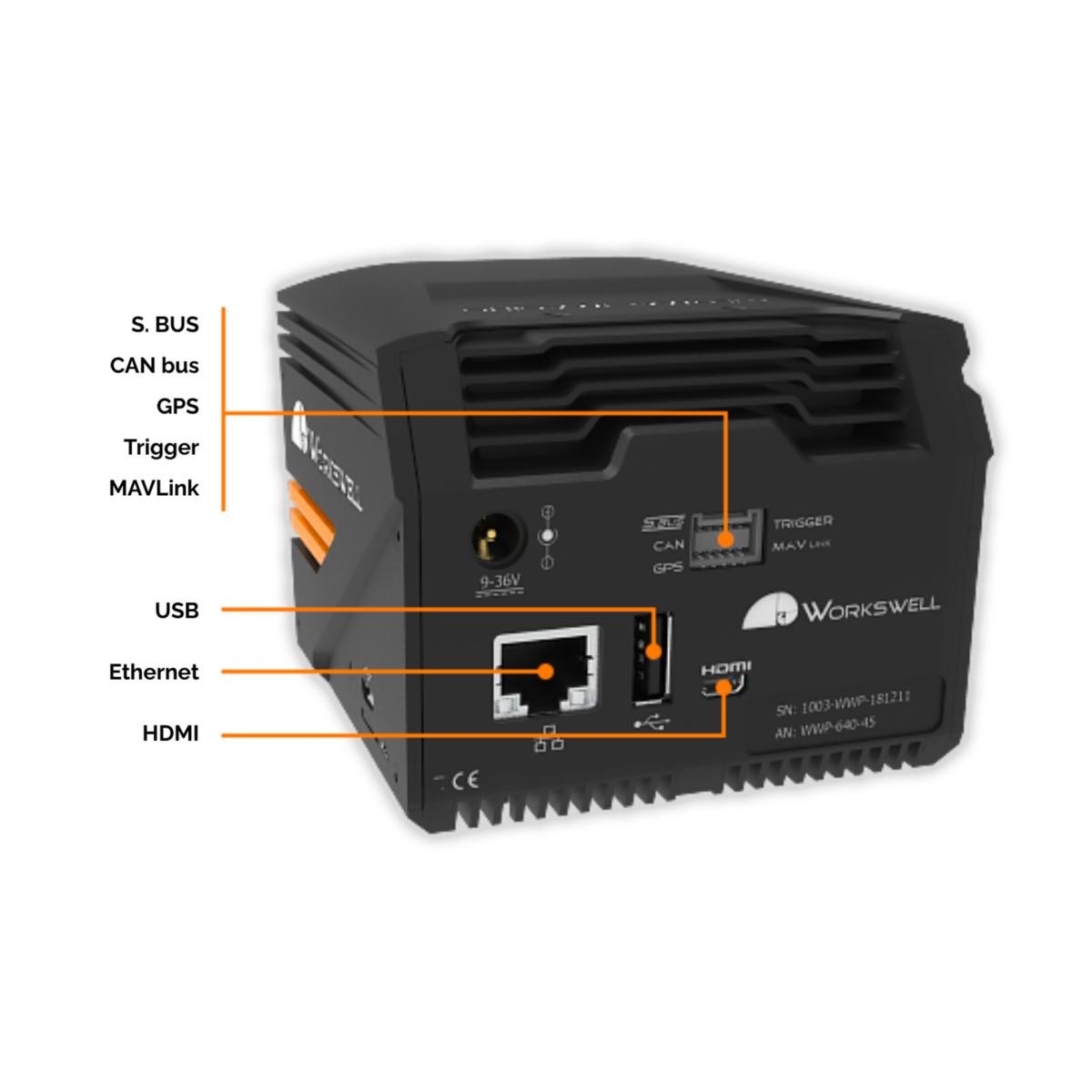

Many Interfaces

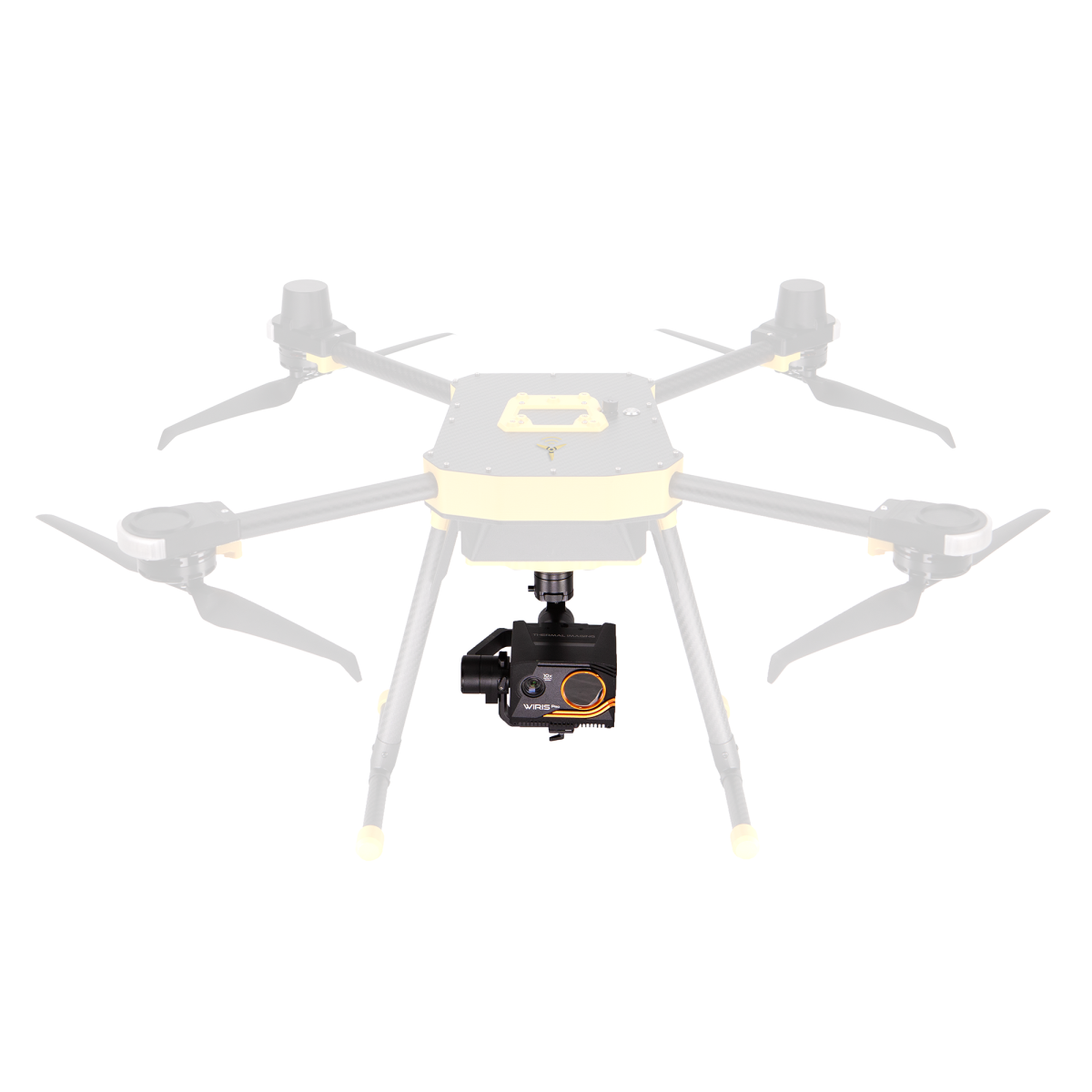

Workswell’s WIRIS® Pro also offers an interface enabling the widest range of connections to the drone, the control unit, an external GPS sensor, and other devices. A Wi-Fi low latency live video streaming and command link is also available. The following HW interfaces are on offer:

  •
