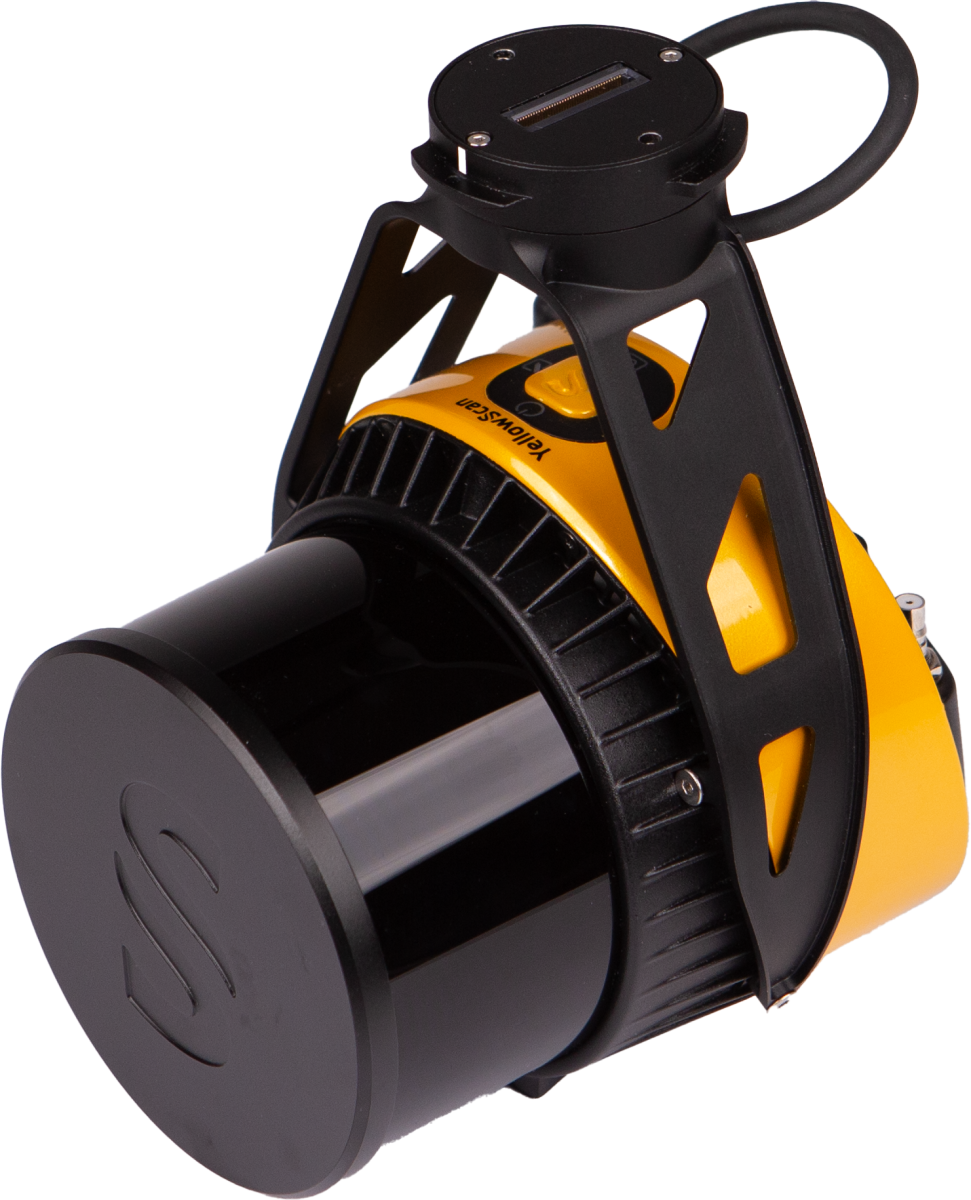

Surveyor Ultra OEM for KUR-500v2

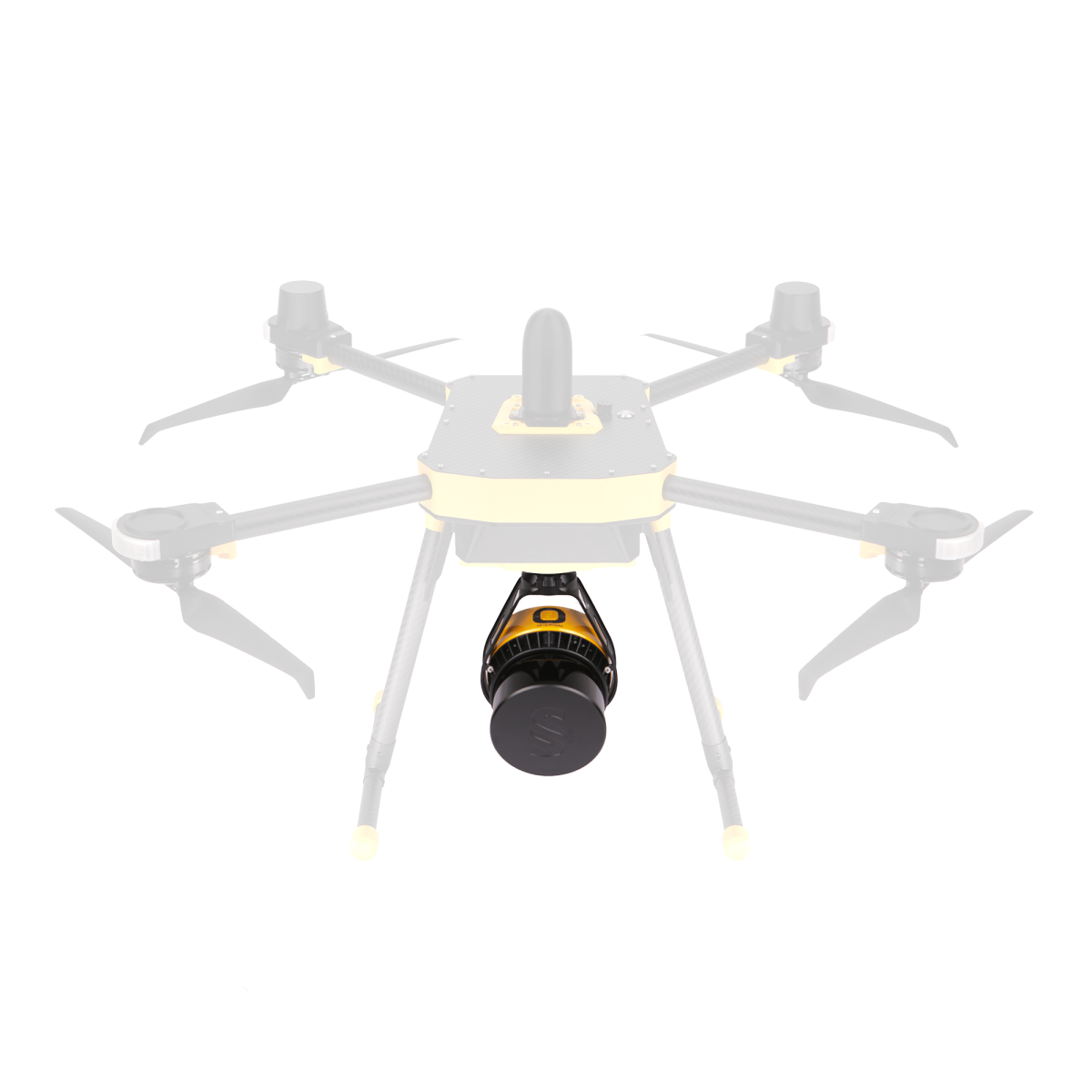

New Generation lightweight 360° LiDAR System for KUR-500V2MAPPING
Mappatura
The yellowscan Surveyor Ultra OEM marks a new generation of OEM LiDAR systems integrating SBG Systems' IMU, combined with an integrated RGB caemra for colorization purposes.
Il YellowScan Surveyor Ultra OEM segna una nuova generazione di sistemi LiDAR OEM integrando l'IMU di SBG Systems, combinato con una fotocamera RGB integrata per scopi di colorazione.
General Characteristics
| Weight | 0.753 kg |
| Size | L 128 x W 101 x H 111 mm |
| Power Range | 10-24 Vdc |
| Power consumption | 20 W alone, 36W with accessories |
| Environmental use | For external use |
| Environmental protection | N/A |
| Operating temperature(2) | -10°C to +40°C |
Technical Specifications
| Wavelength | 905 nm |
| Precision | 3 cm |
| Accuracy | 2.5 cm |
| Integrated Camera | 8 MPx (for Colorization purposes) |
| Laser Range | 80 m @10% reflectivity 100 m @ 16% reflectivity 120 m @ 22% reflectivity |
| Scanner field of view | 360° x 40.3° |
| Shots per Second | 640,000 |
| Max. Echoes per Shot | 3 |
